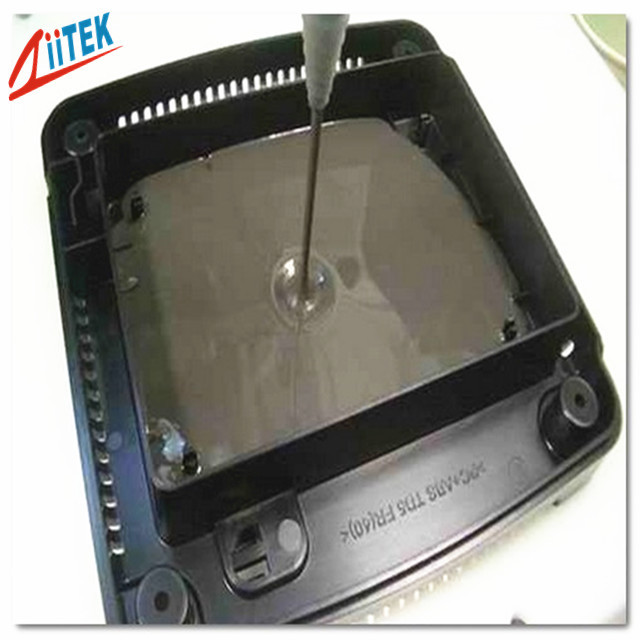

High Performance One Component Thermal Conductivity Epoxy Glue for
electronic potting compound
Product Summary:
TIETM380-25 is a one component, heat cured epoxy adhesive. lt has excellent
thermal conductivity and bond strength.
TIETM380-25 is a good choice for high speed production lines because it has
the rheology to allow stencil printing and a fast, one component,
heat cure.
Spec-of-TIE380-25.pdf
Feature
> Outstanding thermal performance 2.5W/mK
> High tack surface reduces contact resistance
> RoHS compliant
> UL recognized
> Fiberglass reinforced for puncture, shear and tear resistance
> Easy release construction
Applications
> Waterproof LED Power
> SMD LED module
> LED Flesible strip, LED bar
> LED Panel Light
> LED floor light
> Routers
Typical Properties of TIETM380-25 |
| Chemical type | Epoxy | Test Method |
| Appearance uncured | Gray Paste | Visual |
| Appearance cured | Dull Gray Solid | Visual |
| Components | One Component | ***** |
| Heat Capacity | 0.7 l/g-K | ASTM C351 |
| Key Substrates | Metals, ceramics | ***** |
| Hardness | 92 Shore A | ASTM 2240 |
| Continuous Use Temp | -40 to 180℃ | ***** |
| Tensile strength Al/Al @25°C | >2800psi | ***** |
| Thermal Conductivity | 2.5 W/m-K | ASTM D5470 |
| Packing details | 1kg/can | ***** |
Application Features:TIE™380-25
Color Gray
Viscosity@25℃ 140,000 cPs
Specific Gravity@25℃ 2.1 g/cc
Shelf life @25℃° 10 Days
@0℃° 6 Months
(Storage methods and temperature will affect the shelf life)
Curing procedures:
Curing temperature Curing time
100℃° 3 Hours
125℃ 1.5 Hour
150℃ 20 Minutes
170℃ 5 Minutes
