Silicon Free Thermal Pads
Z-Paster100-20-11UF Series is a high performance and compatible non-silicone material
of the thermal conductive interface materials.
The roleis to fill the air gaps between the heating elements and
the heat dissipation fins or the metal base. lt applies to the
liner based on silicone suitably.The flexibility and elasticity
make it suited to the coating of the very uneven surfaces.Heat can
transmit to the metal housing or dissipation plate from the
separate elements or even the entire PCB, which in effect enhances
the efficiency and life-time of the heat-generating electronic
components.

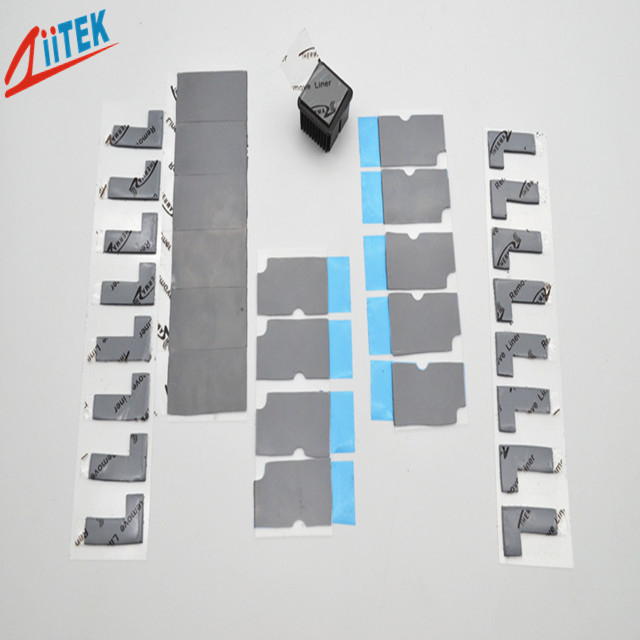

Z-PASTER100-20-11UF-Silicone-free-Thermal-conducti...
Features
> Silicone-free
> ROSH compliance
> Good thermal conductive:2.0W/mK
> Soft and Compressible for low stress applications
> Available in varies thickness
Application
> Cooling components to the chassis of frame
> Car Battery & Power Supply
> Charging Pile
> RDRAM memory modules
> Micro heat pipe thermal solutions
> Automotive engine control units
> Telecommunication hardware
> Handheld portable electronics
> Semiconductor automated test equipment (ATE)
| Typical Properties of Z-Paster100-20-11UF Series |
| Color | Gray | Visual | Dielectric Breakdown Voltage (T= 1mm above) | >5000 VAC | ASTM D149 |
| Construction | Silicone-free /The metal oxide fills | ********** | Dielectric Constant | 5.2(@ MHz) | ASTM D150 |
| Thermal Conductivity | 2.0 W/mK | ASTM D5470 | Volume Resistivity | 6.0X1013 Ohm-meter | ASTM D257 |
| Hardness | 75 Shore 00 | ASTM 2240 | Continuous Use Temp | – 20 To 125 ℃ | ********** |
| Specific Gravity | 2.65 g/cc | ASTM D297 | Outgassing (TML) | 0.30% | ASTM E595 |
| Thickness | 0.020"-0.200" | ASTM D374 | Flame Rating | 94 V-0 | equivalent to |
Standard Thicknesses
0.010-inch to 0.200-inch (0.25mm to 5.0mm)
Company Profile
Ziitek company is a manufacturer of thermal conductive gap fillers, low melting
point thermal interface materials, thermal conductive insulators,
thermally conductive tapes, electrically & thermally conductive
Interface pads and thermal grease,Thermal Conductive
plastic,Silicone Rubber,Silicone Foams,Phase Changing Materials
products, with well-equipped testing equipment and strong technical
force.
FAQ:
Q: Are you trading company or manufacturer ?
A: We are manufacturer in China
Q: How long is your delivery time?
A: Generally it is 3-7 work days if the goods are in stock. or it
is 7-10 work days if the goods are not in stock, it is according to
quantity.
Q: Do you provide samples ? is it free or extra cost?
A: Yes, we could offer samples free of charge.
Q: How to find a right thermal conductivity for my applications
A: It depends on the watts of power source , ability of heat
dissipation. Please tell us your detailed applications and the
power, so we can recommend most suitable thermal conductive
materials.
