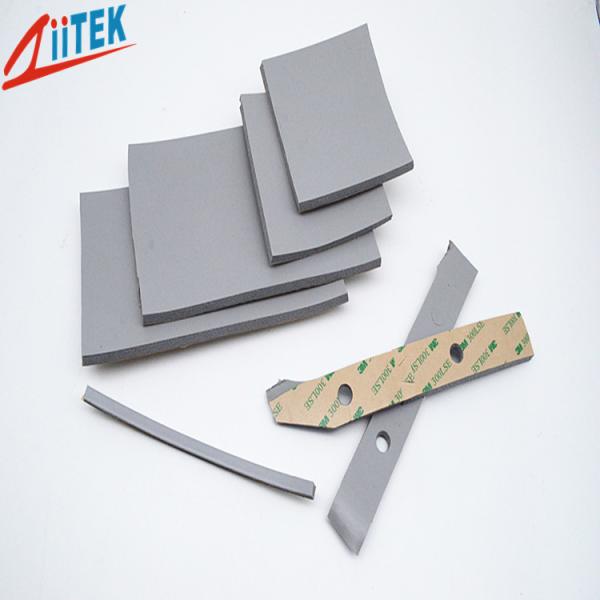

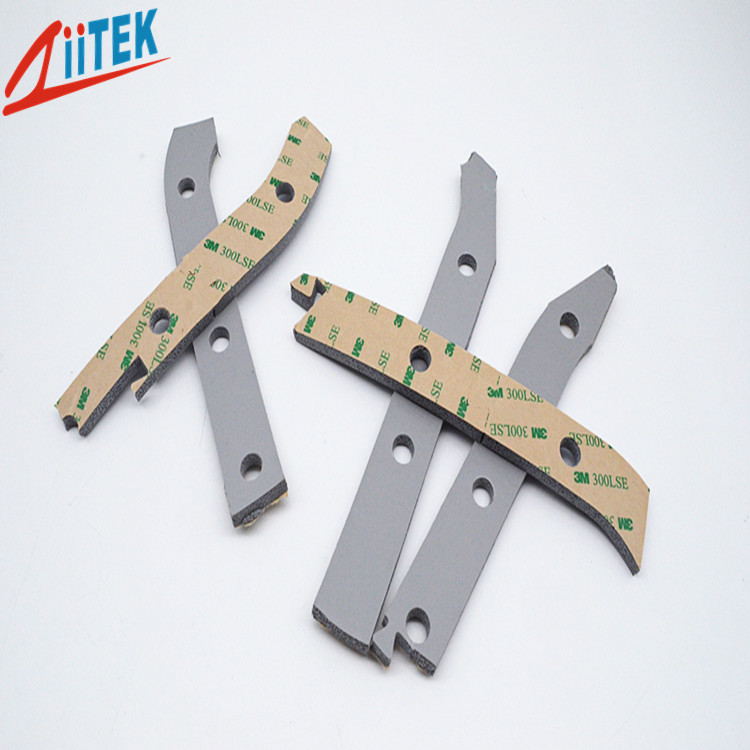

Gray Shock-Absorbing Silicone Foam Sheet For The Automotive
Industry
Company Profile
Ziitek company is a manufacturer of thermal conductive gap fillers,
low melting point thermal interface materials, thermal conductive
insulators, thermally conductive tapes, electrically & thermally
conductive Interface pads and thermal grease,Thermal Conductive
plastic,Silicone Rubber,Silicone Foams,Phase Changing Materials
products, with well-equipped testing equipment and strong technical
force.
Z-Foam800-10FC is a medium stress silicone foamed material with excellent
compressive and permanent deformation properties. Compared with the
traditional carbon foam material, the material has excellent
properties of high and low temperature resistance (-60-200℃), high
flame retardant (v-0) and very low smoke concentration. In
addition, the material has excellent resistance to aging and
weather, making it an ideal material for shock absorption,
cushioning, sound insulation, protection, insulation and fire
protection.
Z-Foam800-10FC--Silicone-foam-specificatio-ns(E).p...
Features
> High and low temperature resistance(-60-200° ℃).
> Good cushioning and high compression.
> Resistance to ultraviolet light - ozone.
> Provides enhanced sealing performance.
> Compressed after using a good recovery.
Application
> Car Battery
> Traffic Equipment
> Communication & Electrical Equipment
> Electronic products
> Charging Pile
| Typical Properties of Z-Foam800-1030SC Series |
| Test procedure | Unit | Technical index | Test method |
| Color | **** | Gray | Visual |
| Density | g/cm3 | 0.42 ±0.03 | ASTM D1056 |
| Compressive stress, 25% | kpa | 110±15 | ASTM D1056 |
| Compression permanent deformation | % | ≤5.0 | ASTM D1056 |
| Tensile Strength | Mpa | ≥0.4 | GB/T 528-2009 |
| Elongation | % | ≥100 | GB/T 528-2009 |
| Bibulous rate | % | ≤5.0 | ASTM D570 |
| Environmental testing | ***** | Qualifiled | ROHS |
| Flame spread index | ***** | Qualifiled | ASTM E162 |
| Burning smoke concentration | ***** | Qualifiled | ASTM E662-2015 |
| Combustion of toxic gases | ***** | Qualifiled | SMP 800-C-2009 |
| Low temperature bending | ***** | -55℃ G57 Qualifiled | ASTM D1056 |
| Dielectric strength | KV/mm | ≥3.5 | GB/T 1695-2005 |
| Volume resistivity | Ω.com | ≥1.0*10^15 | GB/T 1695-2005 |
| Flame retardancy ratio | ***** | V-0 | E331100 |
| Thermal conductivity | W/(m.K) | 0.06 | ASTM D5930 |
Independent R&D team
Q: How do I place an order?
A:1. Click the "Sent messages" button to continue with the process.
2. Fill out the message form by entering a subject line, and
message to us.
This message should include any questions you might have about the
products as well as your purchase requests.
3. Click the "Send" button when you are finished to complete the
process and send your message to us
4. We will reply you as soon as possible with Email or online.
FAQ:
Q: Are you trading company or manufacturer ?
A: We are manufacturer in China.
Q: What's the thermal conductivity test method given on the data
sheet ?
A: All the data in the sheet are actual tested.Hot Disk and ASTM
D5470 are utilized to test the thermal conductivity.
Q: How to find a right thermal conductivity for my applications
A: It depends on the watts of power source , ability of heat
dissipation. Please tell us your detailed applications and the
power, so we can recommend most suitable thermal conductive
materials.
