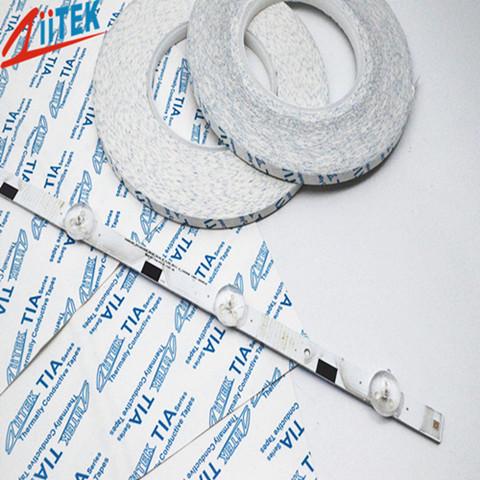

Wholesale Thermal Conductive Double Sided Tape for LED Light
With professional R&D capabilities and over 19 year experiences
in thermal interface material industry, Ziitek company own many
unique formulations which are our core technologies and advantages.
Our goal is to provide quality & competitive products to our
customers worldwide aiming for long-term business cooperation.
The TIA™600P Series products are mostly used for bonding heat dissipation fins,
microprocessors and other power consumption semiconductors. This type of adhesive tape possesses ultimate bonding strength with
low thermal impedance, with which in effect can be able to replace
the method of lubricating grease and mechanical fixing.
TIA600P-Series-Datasheet(E).pdf
Features
> Thermal Conductivity: 0.8W/mK
> High performance,thermally conductive acrylic adhesive.
> Hihg bond strength to a variety of surfaces double sided pressure
sensitive adhesive tape
> Fire rating equate 94V0
Applications
> Mount heat sink onto BGA graphic processor or drive processor
> Mount heat spreader onto power converter PCB or onto motor
control PCB
> High performance, thermally conductive acrylic adhesive
> Can be used instead of heat cure adhesive,screw mounting or
clip mounting
> LED Flesible strip, LED bar
> LED Panel Light
> LED floor light
| Typical Properties of TIA™600P Series |
| Product Name | TIATM605P | TIATM608P | TIATM610P | Test Method |
| Color | White | Visual |
| Adhesive Type | Acrylic Adhesive | ******** |
| Backing Type | PET | ******** |
| Continuous Use Temp | -45℃ to 120℃ | ******** |
| Composite Thickness | 0.005"/0.127mm | 0.008"/0.203mm | 0.010"/0.254mm | ASTM D374 |
| Voltage Breakdown | > 1000Vac | > 1200Vac | > 1500 Vac | ASTM D149 |
| 180 Peel Adhesion | >1200 g/inch (Steel, Immediate) | PSTC-1 |
| 180 Peel Adhesion | >1400 g/inch (Steel after 24hrs) | PSTC-1 |
| Holding Power 25℃/Hours | > 48 Hours | PSTC-7 |
| Holding Power 80℃/Hours | > 48 Hours | PSTC-7 |
| Thermal Conductivity | 0.8W/mK | ASTM D5470 |
| Fire rating | Equal to 94 V0 | ******** |
Standard Thicknesses:
0.005"(0.127mm), 0.008"(0.203mm) , 0.010" 0.254mm
Consult the factory alternate thickness.
Standard Sizes:
40" x 100"(1016mm x 30.48M)
Individual die cut shapes can be supplied.
Reinforcement:
The TIA™600P Series the coil can be filled with PET.
Independent R&D team
Q: How do I place an order?
A:1. Click the "Sent messages" button to continue with the process.
2. Fill out the message form by entering a subject line, and
message to us.
This message should include any questions you might have about the
products as well as your purchase requests.
3. Click the "Send" button when you are finished to complete the
process and send your message to us
4. We will reply you as soon as possible with Email or online.
FAQ:
Q: Are you trading company or manufacturer ?
A: We are manufacturer in China.
Q: How long is your delivery time?
A: Generally it is 3-7 work days if the goods are in stock. or it
is 7-10 work days if the goods are not in stock, it is according to
quantity.
Q: Do you provide samples ? is it free or extra cost?
A: Yes, we could offer samples free of charge.
